MPO/MTP Patch Panel

MPO/MTP/MTP Patch Panel

Product Description:

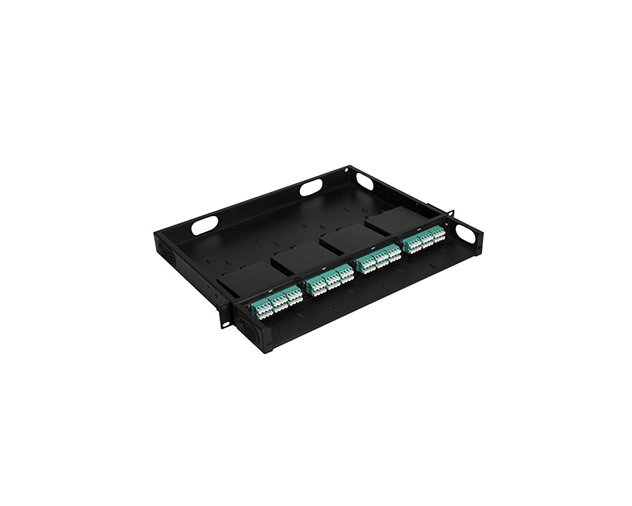

MPO/MTP patch panel is a high density panel which is specially designed to accommodate high density cabling solution in Data Center and Telecommunication central office. MPO/MTP patch panel supports maximum 4xMPO/MTP cassettes in 1U,8 x cassettes in 2U and 16 cassettes in 4U.Each MPO/MTP Cassette vailable in 12 or 24xLC connectors,which provides max.96 ports in 1U,192 ports in 2U and 384 port sin 4U (LC).

Category:

MPO/MTP Patch Panel

图片名称

+86 18145922016

图片名称

 sales@fiber-mile.com

CONTACT+
图片名称
图片名称
图片名称
图片名称
图片名称
  • 产品描述
  • Features
  • Application
  • Specification
  • Download

    • Suitable for 19 inch standard frame

    • Suitable for ribbon and single fiber

    • Compact design for space saving

    • Front mark on the plate is easy for identification and operation

    • Standard size, light weight and reasonable structure

    • Easy for management and operation

    • Modular design, which can be used in multiple module boxes and configured in MPO/MTP-LC Type Distribution Box

    • The MPO/MTP ribbon multi-core fiber is divided into multiple lc interfaces to realize parallel conversion of MPO/MTP-LC

    • Data communication network

    • Fiber Optic Transmission System

    • CATV Networks

    • Local Area Network

    • Testing/Measurement Instruments

  • Model

    MPO/MTP-LC Type Cassette Quantity

    Height

    Dimension(LxWxH)

    MPO/MTP-LC

    4

    1U

    482mmx350mmx44.5mm

    MPO/MTP-LC

    8

    2U

    482mmx350mmx88.9mm

    MPO/MTP-LC

    16

    4U

    482mmx350mmx177.8mm

  • MPOMTP Patch Panel DATASHEET.pdf
