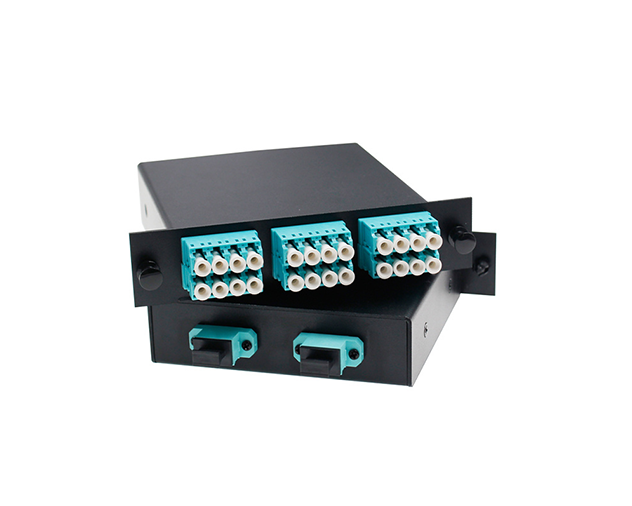

MPO/MTP Cassette

Product Description:

MPO/MTP Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.

Category:

MPO/MTP Cassettes

+86 18145922016

sales@fiber-mile.com

CONTACT+

产品描述
Features
Application
Specification
Download

- 19-inch standard size, fit for 19-inch rack, 23-inch size is available on request
- Standard size is 1U, 2U, or 4U are available on request
- 12, 24, 48, 96 Port optional
- Suitable for LC,SC, FC adapter, duplex and simplex are both available
- Smart design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
- Provide termination, protection, connection, management of fiber optic cable
- Black or optional color
- Data communication network
- Fiber Optic Transmission System
- CATV Networks
- Local Area Network
- Testing/Measurement Instruments
Item
MPO/MTP Cassette
Insertion loss
＜0.75 dB
Return loss
＞25 dB
Insert-pull test
(500 times)＜0.3 dB
Operation temperature
- 40℃ ~ +80℃
Anti-tensile force
15kgf
MPOMTP Cassette DATASHEET.pdf
