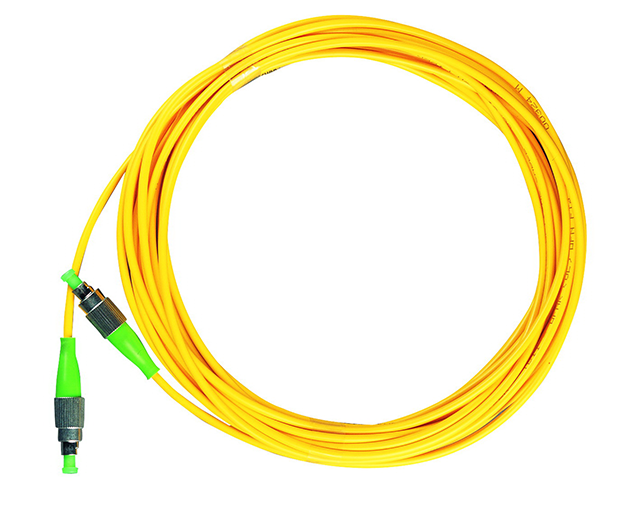

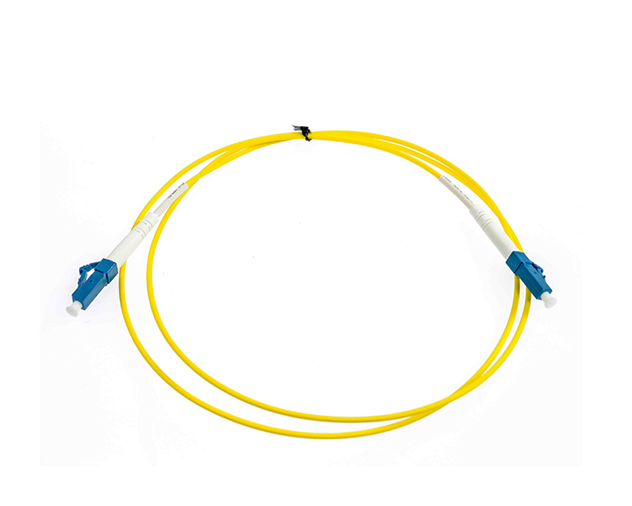

Fiber Optic Parch Cord

Product Description:

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Category:

Patch Cord

+86 18145922016

sales@fiber-mile.com

CONTACT+

产品描述
Features
Application
Specification
Download

- Ceramic Ferrule
- High return loss
- Low insertion loss
- Good repeatability and and exchangeability
- Excellent Polished and 100% tested
- Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
- Telecommunications
- CATV, LAN, MAN, WAN, Test &Measurement
- Military industry
- Medical

Item	SM(Single Mode)		MM(Multi mode)
Fiber Cable Type	G652/G655/G657		OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125		62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0

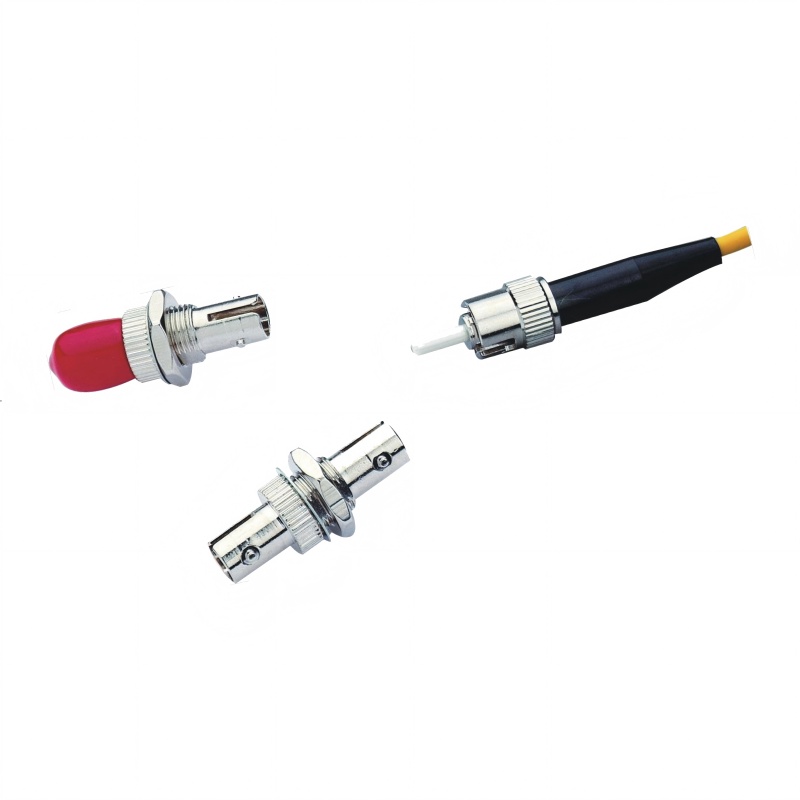

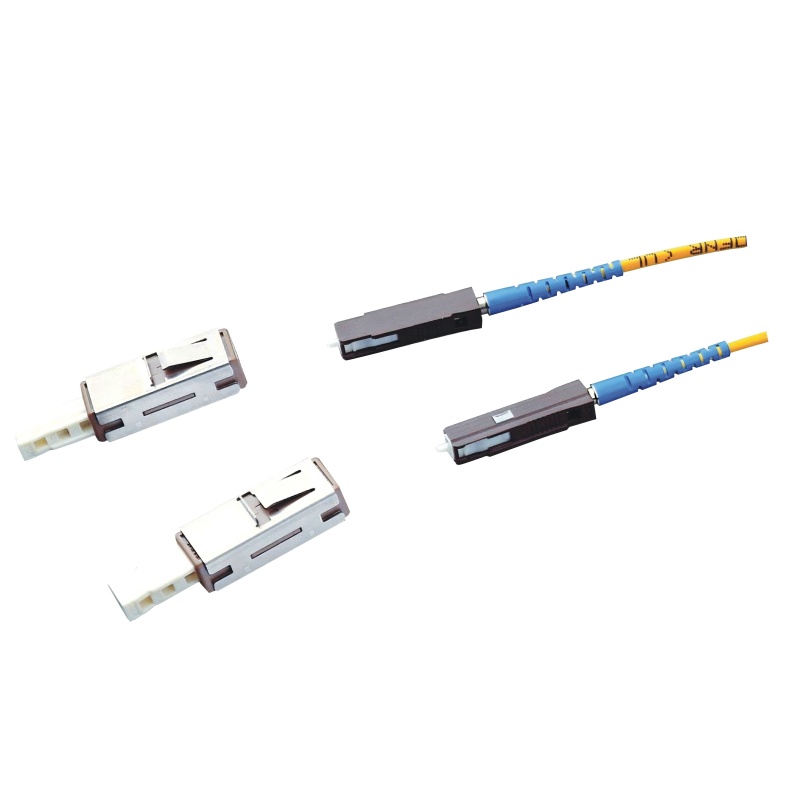

Connector type	LC/SC/FC/ST/MU
Length	Customized
Endface Type	UPC	APC	UPC
Typical Insertion Loss (dB)	<0.2	<0.3	<0.2
Return Loss (dB)	>50	>60	>30
Insert-pull Test (dB)	<0.2	<0.3	<0.15
Interchangeability (dB)	<0.1	<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80
