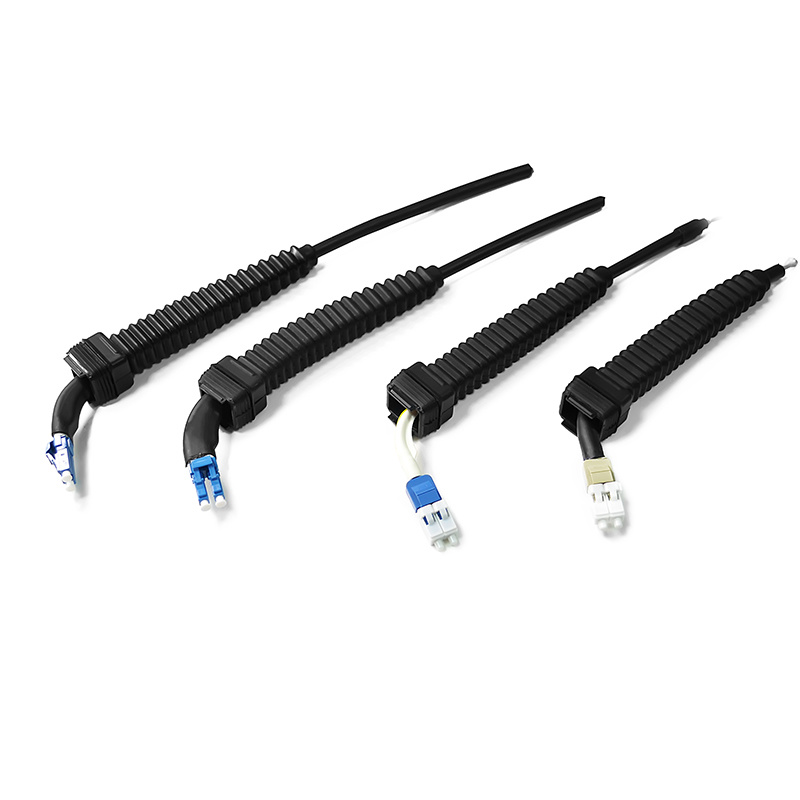

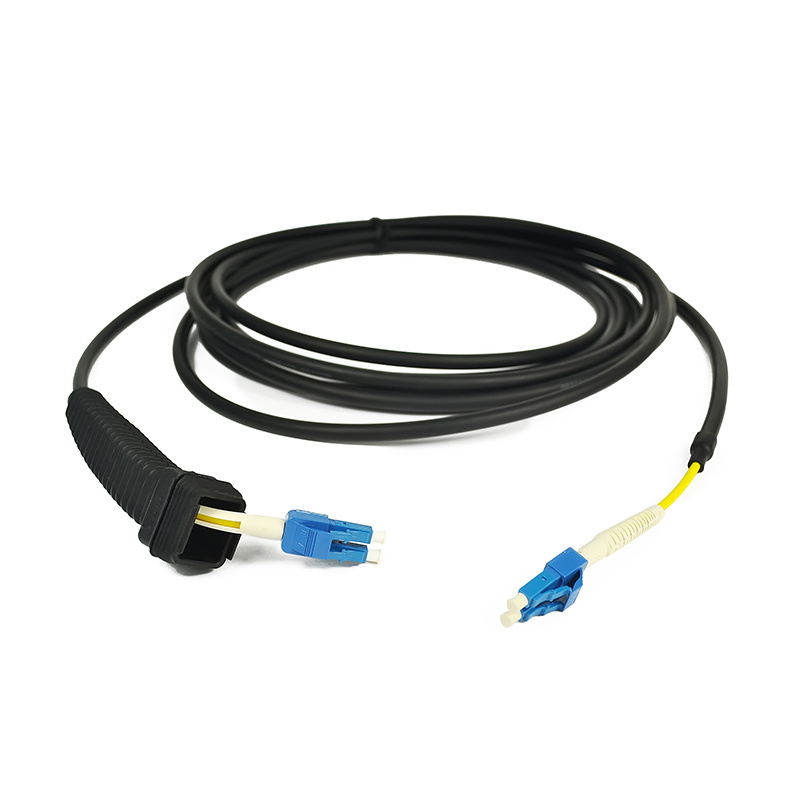

NSN Boot Duplex LC Patch Cable

Product Description:

NSN Boot CPRI Optic Patch Cord cable with flexible boots is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Compatible with Nokia's waterproof connector for latest and next-generation mobile communication systems. Especially in the 3G, 4G,5G Base station (BBU to RRU).

Category:

FTTA Products

+86 18145922016

sales@fiber-mile.com

CONTACT+

产品描述
Features
Application
Specification
Download

- IP67 water and dust protection
- Capacity 1 to 3 fiber pairs, LC connector or vendor specified connector
- Corrugated steel armor or non armor
- Outer sheath of UV resistant
- Temperature range -40℃to +85℃
- FTTA
- For connection between distribution box and RRH
- Multi-purpose Outdoor
- Deployment in Remote Radio Head cell tower applications

Item	Parameter
Connector type	NSN Boot Duplex LC
Cable diameter	5.0mm、7.0mm round cable
Connector insertion loss (dB）	≤0.3
Connector return loss (dB)	≥ 50dB (UPC) ,≥ 60dB (APC)
Cable pull	80N, IEC 61300
Waterproof	IP67
Working temperature	-40℃~85℃
Storage Temperature	-40℃~85℃
