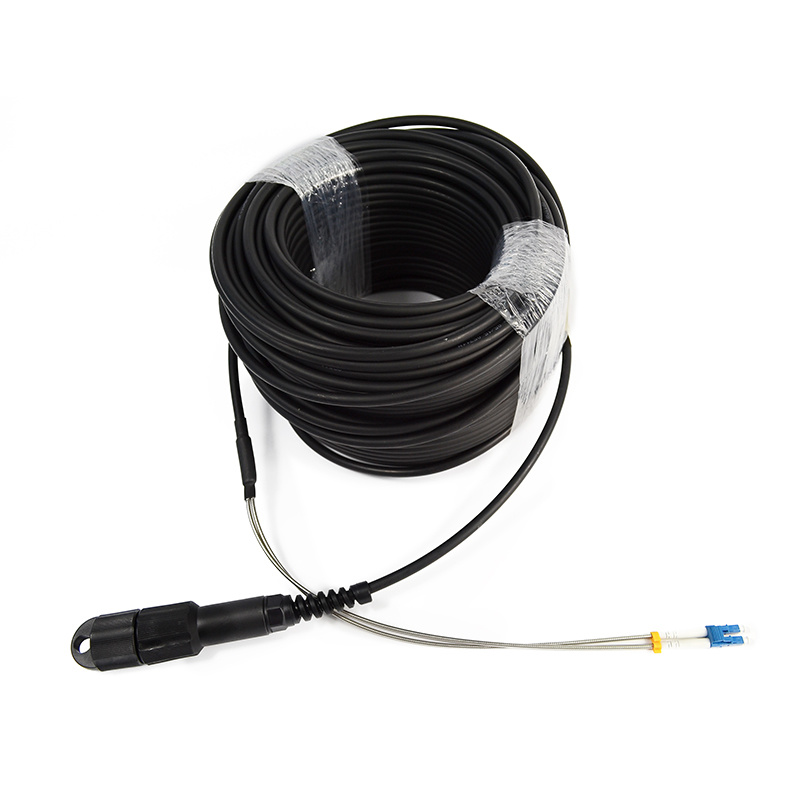

PDLC Outdoor Cable Assembly


Product Description:

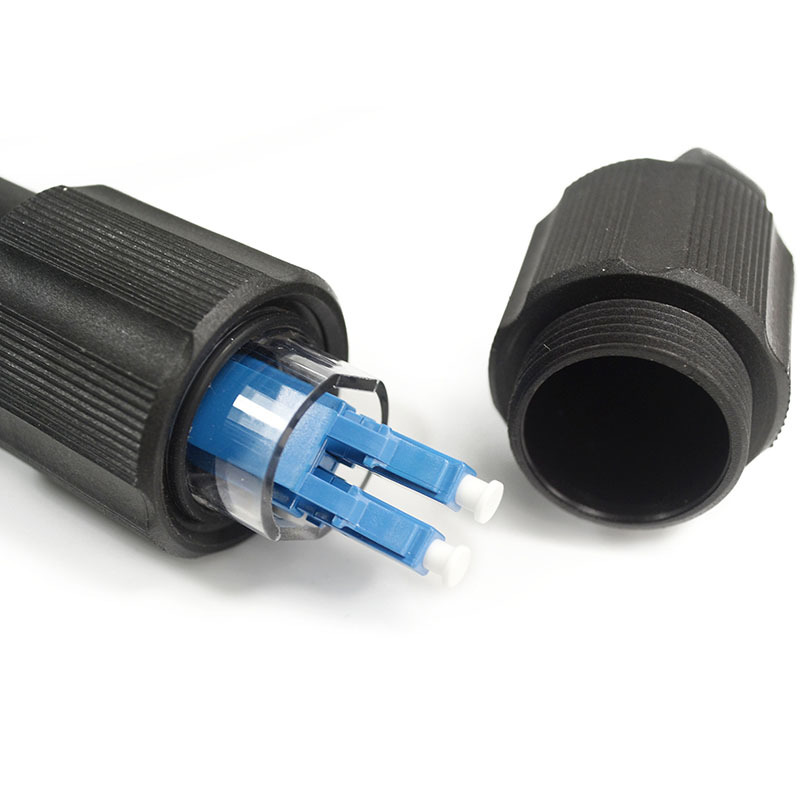

PDLC connectors and required optical cables have become standard interface applications for 4G\ 5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP68. It is easy to install and transmit reliable data over a long distance under harsh environment.

Category:

FTTA Products

CONTACT+

  • 产品描述
  • Features
  • Application
  • Specification
  • Download
    • Standard Duplex LC connector, low IL, high RL

    • IP68 protection, salt-mist proof, humidity proof,dust proof

    • Easy Operation, reliable and cost-effective Installation

    • 100% optically tested to ensure quality performance assemblies


    • FTTA

    • For connection between distribution box and RRH

    • Multi-purpose Outdoor

    • Deployment in Remote Radio Head cell tower applications


  • Item

    Parameter

    Connector type

    PDLCDuplex LC

    Cable diameter

    7.0mm round cable

    Connector insertion loss (dB

    ≤0.3

    Connector return loss (dB)

    50dB (UPC) ,60dB (APC)

    Cable pull

    120N, IEC 61300

    Waterproof

    IP68

    Working temperature

    -40℃~85℃

    Storage Temperature

    -40℃~85℃


  • PDLC Outdoor Cable Assembly DATASHEET.pdf
