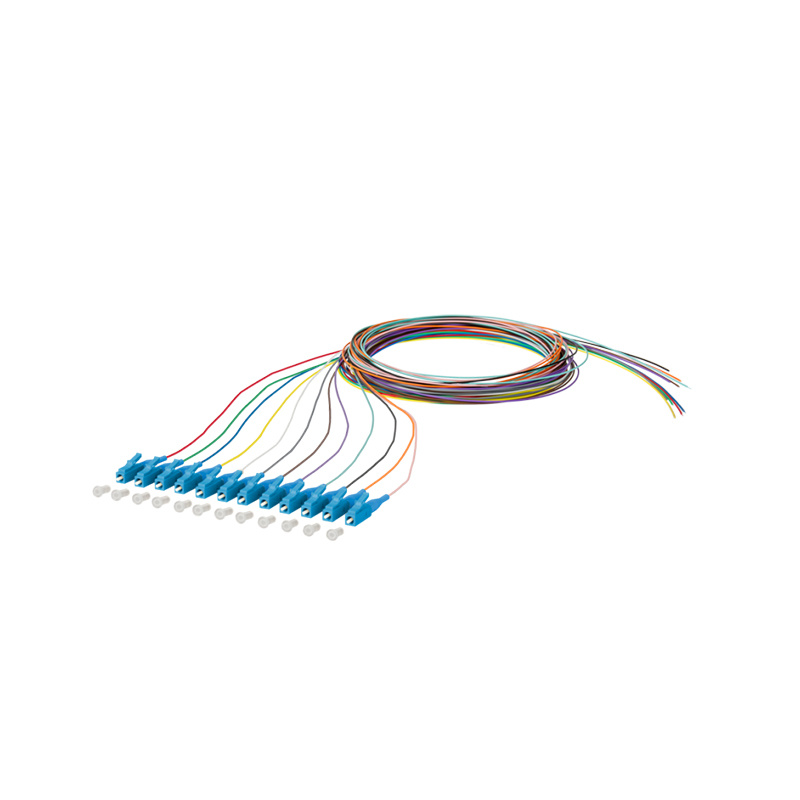

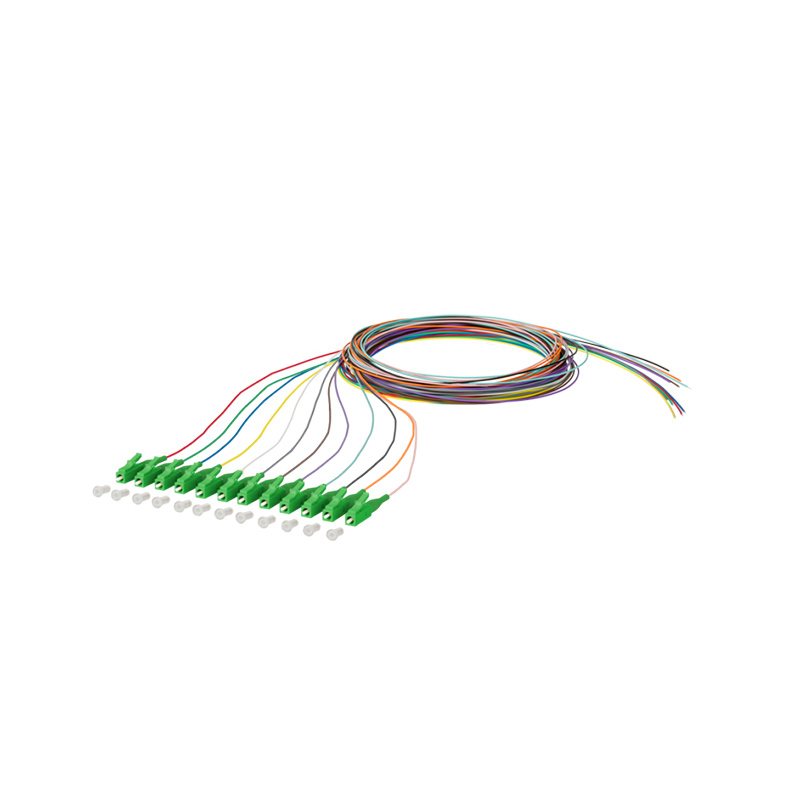

Fiber Optic Pigtail（12Fibers）

Product Description:

The 12 fiber pigtails come pre-terminated with LC, FC SC, MU and ST connectors. Core and cladding combinations range from 62.5/125µm, 50/125µm, and 9/125µm for OM1, OM2/OM3/OM4, and OS2 fiber specifications. 12 Fiber Optic pigtails come in lengths of 1, 2, or 3 meters with additional longer with available upon special request.

Category:

Pigtail

+86 18145922016

sales@fiber-mile.com

CONTACT+

产品描述
Features
Application
Specification
Download

- Low insertion loss,High return loss
- Ceramic Ferrule
- Good repeatability and and exchangeability
- Excellent Polished and 100% tested
- Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
- Telecommunications
- CATV, LAN, MAN, WAN, Test &Measurement
- Termination of optical networks via fusion or mechanical splicing
- Testing of optical devices
- Cable acceptance testing

Item	SM(Single Mode)		MM(Multi mode)
Fiber Cable Type	G652/G655/G657		OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125		62.5/125	50/125
Fiber Count	2,4,8,12,24 fiber or Customized
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Connector type	LC/SC/FC/ST/MU
Length	Customized
Endface Type	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.3	<0.2	<0.2
Return Loss (dB)	>50	>60	>30
Insert-pull Test (dB)	<0.2	<0.3	<0.15
Interchangeability (dB)	<0.1	<0.15	<0.1
Anti-tensile Force (N)	>70（Cable OD>1.6mm ）
Temperature Range (℃)	-40~+80
