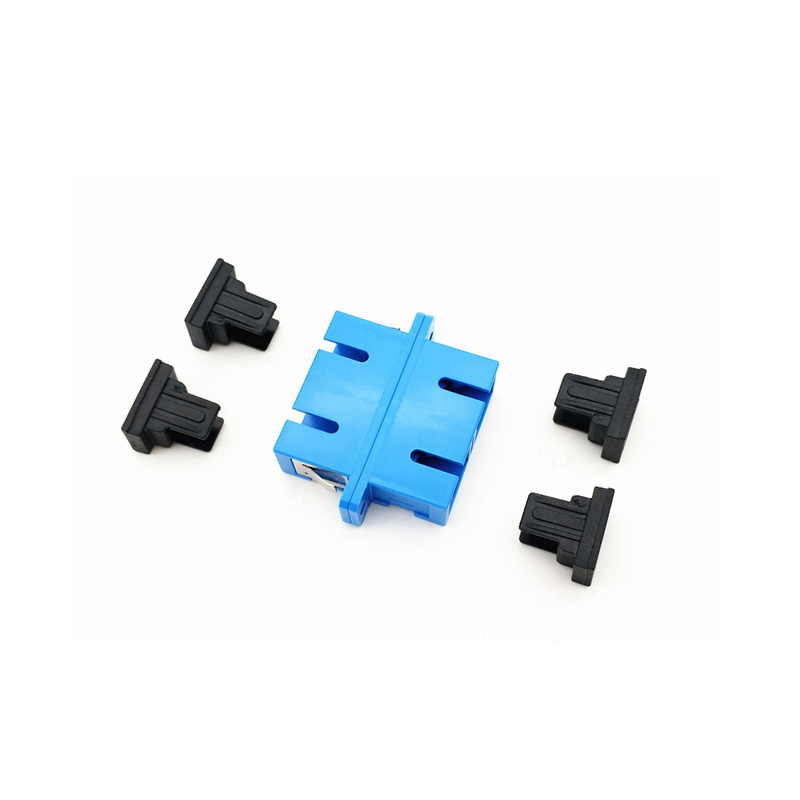

SC Fiber Optic Adapter

Product Description:

Fiber optic adapters allow users to couple from one connector type to another same type. These adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. These adapters are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.

Category:

Fiber Optic Adapter

+86 18145922016

sales@fiber-mile.com

CONTACT+

产品描述
Features
Application
Specification
Download

- UPC or APC Optional
- SM or MM Optional
- With/Without flange Optional
- Simplex , Duplex or Quad Optional
- Ceramics Sleeve , Compact design
- Low insertion loss
- Comply with IEC, Telcordia GR 326 standard
- CATV
- Telecommunication networks
- Test equipment
- Local Area Networks(LANs)
- Data processing networks

Adapter	SC Simplex , Duplex or Quad Optional
Adapter Mode	SM/MM	Color	Blue/Beige/Aqua/Green
Polish Type	UPC/APC	Material	Ceramics & Plastic
Insertion Loss	≤0.2dB	Durability	≤0.1dB
Flammability Rate	UL94-V0	Operating Temperature	-25-70℃
