Outdoor Fiber Optic Cables

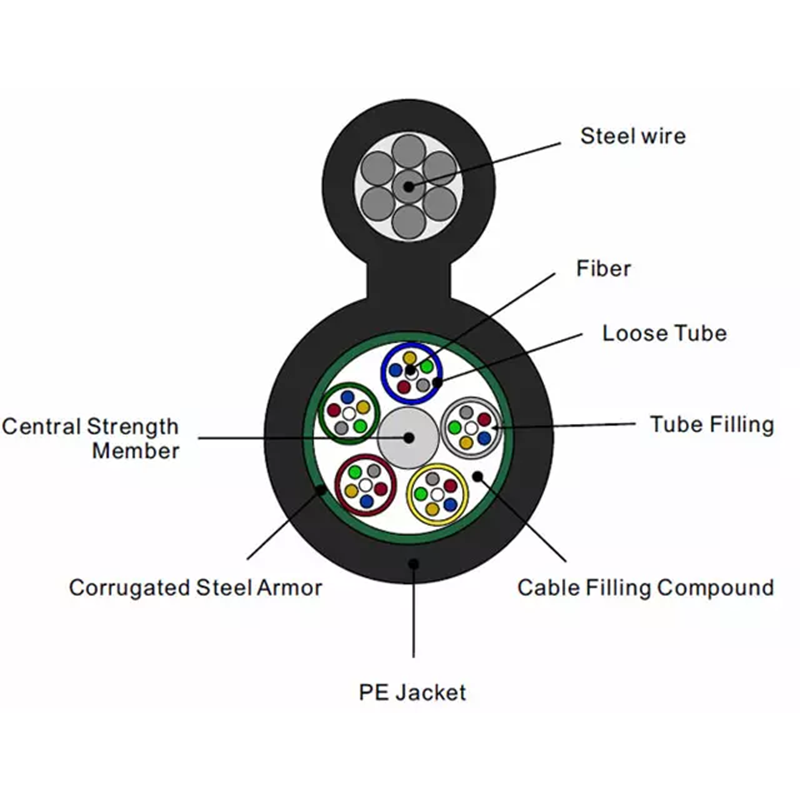

Stranded Loose Tube Figure-8 Self-Supporting Optical Fiber Cable GYTC8S
Product Description:
Category:
Outdoor Fiber Optic Cables
- 产品描述
- Features
- Application
- Specification
- Download
-
Easy to install, with the steel stranded wire self -supporting, construction cost saving;
Filled with water-blocking gel in every production process; the whole cross section is water resistance.
Stable control of cable excess length;
The additional attenuation is less than 0.02dB/Km and the dispersion value does not change after cabling;
Excellent environmental performance, applicable temperature range from -40℃to +70℃.
-
Long-haul communication, interoffice communication；
Suitable for aerial and duct installations in telecommunication, FTTx, and backbone networks.
-
Structural Parameters
Fiber count
Steel strand specification
Cable O.D(mm)
Messenger O.D（mm）
cable height
（mm）
Cable weight
（kg/km）
Minimum Bending Radius（mm）
Tensile Load（N）
Min.Breaking
Tension
(N)
Crush Load (N/100mm)
Static
Dynamic
Short term
Long term
Short term
Long term
2-30
1x7-4.2
9.8
6.4
18.8
210
10
times O.D
20
times O.D
7000
3500
15550
2000
1000
32-36
10.3
19.3
230
38-60
10.7
19.7
230
62-72
11.3
20.3
255
74-96
12.9
21.9
290
98-120
13.8
22.8
342
122-144
15.2
24.2
378
Optical Characteristics
Fiber type
Attenuation（dB/km）
1310nm
1550nm
G.652D
≤0.4
≤0.3
G.657A
≤0.4
≤0.3
Delivery length
Length：2000m/4000m，or customer standard.
