Central Loose Tube Optical Fiber Cable GYXTW

Product Description:

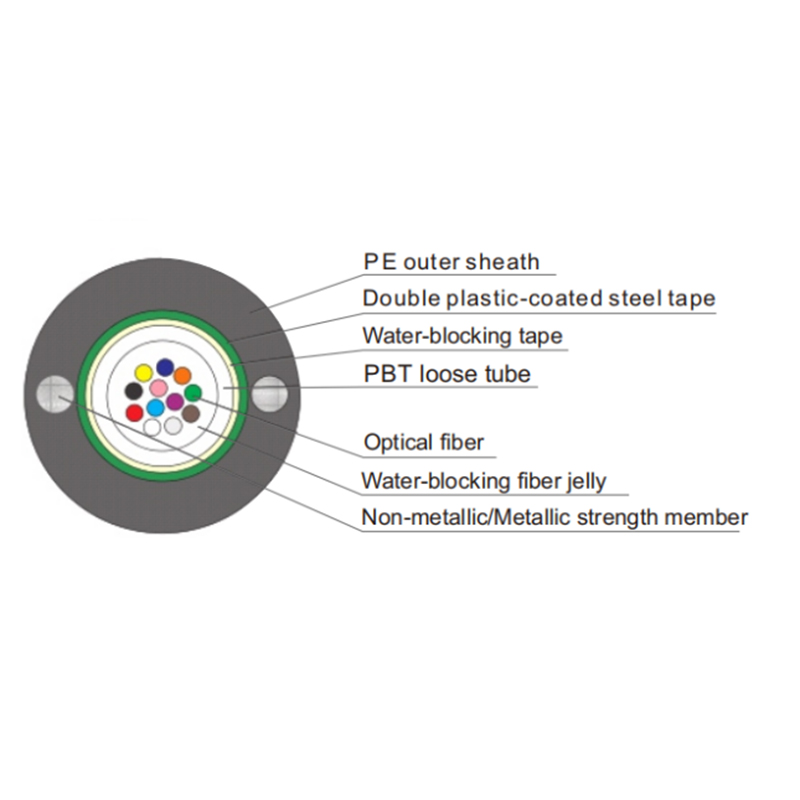

The Primary coating optical fibers are protected by central loose tube, optical fibers are gathered in the center of optical fiber cable and strength members are placed on two sides of the protective layer of cable.

Category:

Outdoor Fiber Optic Cables

+86 18145922016

sales@fiber-mile.com

CONTACT+

产品描述
Features
Application
Specification
Download

- Small outer diameter, light weight, convenient construction;
- Completely solve the problem of tube shrinking;
- Stable control of cable excess length;
- Almost zero additional attenuation after cabling and no change of the dispersion value;
- Excellent environmental performance, applicable temperature range can reach -40℃ ~+70℃.
- Long-haul communication, interoffice communication；
- Suitable for aerial and duct installations in telecommunication, FTTx, and backbone networks.

Structural Parameters

Fiber Count	Cable O.D（mm）	Cable Weight（kg/km）	Minimum Bending Radius（mm）		Tensile Load （N）		Crush Load (N/100mm)
Fiber Count	Cable O.D（mm）	Cable Weight（kg/km）	Static	Dynamic	Short term	Long term	Short term	Long term
2-12	8.9	90	10 Times O.D	20 Times O.D	1500	600	1000	300
14-24	9.1	102
26-48	10.3	123
50-60	10.8	136
62-72	11.3	146
74-96	12.3	169
98-120	13.3	191
122-144	14.0	218
