Indoor Fiber Optic Cables

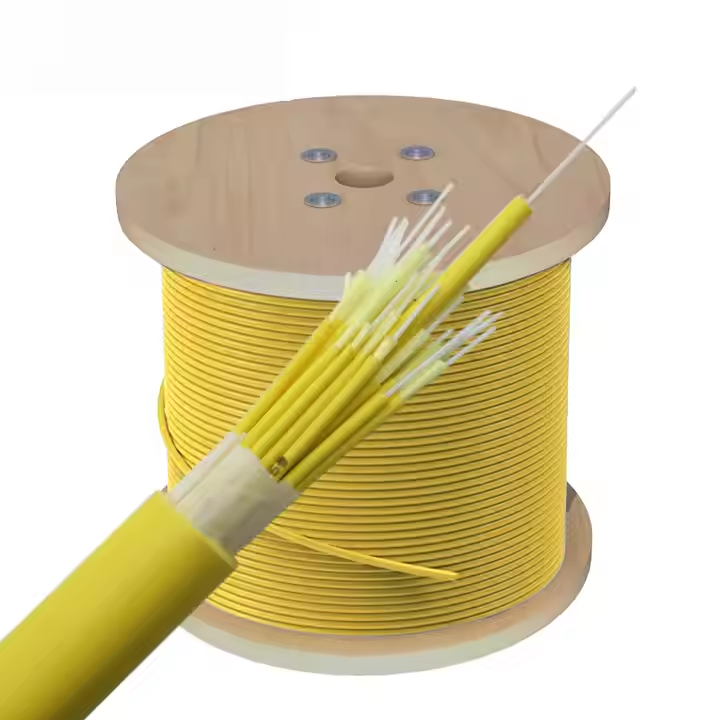

Breakout Optical Cable
Product Description:
Category:
Indoor Fiber Optic Cables
- 产品描述
- Features
- Application
- Specification
- Download
-

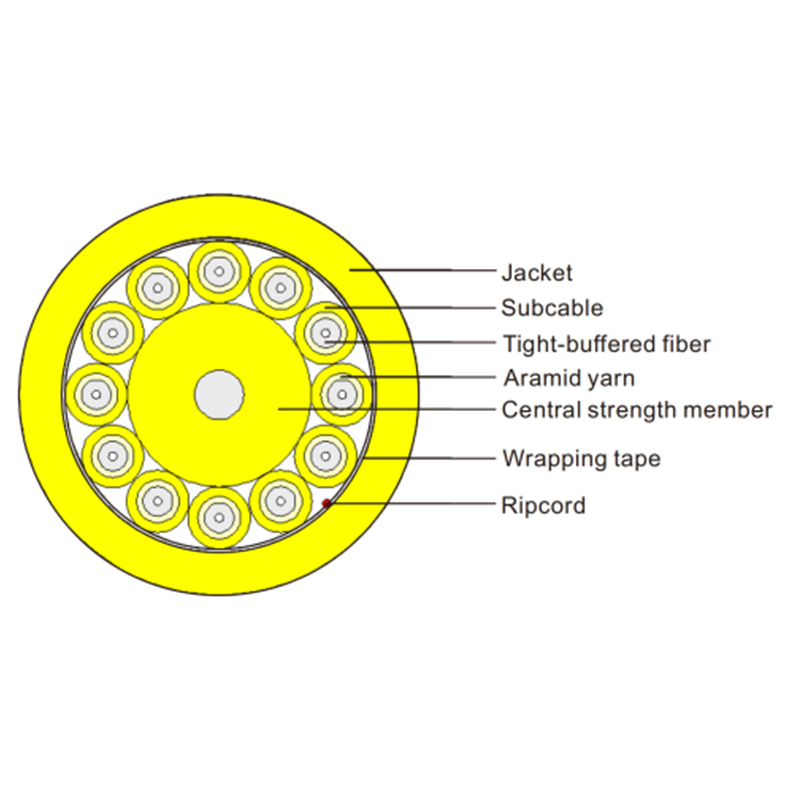

Stranded cable structure, non-metallic strength member to ensure the greater tension;
Aramid yarn to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
-
Distributed indoor;
Backbone distribution cable in building.
-
Structural Parameters
Fiber Count
Strength Member
Cable Diameter
（mm）
Weight
（kg/km）
Minimum Bending Radius
（mm）
Tensile Load
（N)
Crush Load
(N/100mm)
Temperature Range
(℃)
Static
Dynamic
Short Term
Long Term
Short Term
Long Term
2
Aramid Yarn
6.0±0.1
30.5
60
120
440
200
1000
200
-20℃-+60℃
4
Aramid Yarn
7.0±0.1
44.9
70
140
440
200
1000
200
-20℃-+60℃
6
Aramid Yarn
8.0±0.2
63.5
80
160
660
200
1000
200
-20℃-+60℃
8
Aramid Yarn
9.2±0.2
81.9
92
184
660
200
1000
200
-20℃-+60℃
12
Aramid Yarn
12.2±0.3
144.8
122
244
660
200
1000
200
-20℃-+60℃
16
Aramid Yarn
11.5±0.3
123.4
115
230
1320
400
1000
200
-20℃-+60℃
24
Aramid Yarn
13.8±0.5
179.1
138
276
1320
400
1000
200
-20℃-+60℃
32
Aramid Yarn
16.0±0.5
229.6
160
320
1320
400
1000
200
-20℃-+60℃
36
Aramid Yarn
16.5±0.5
251.6
165
330
1320
400
1000
200
-20℃-+60℃
48
Aramid Yarn
19.0±0.8
332.9
190
380
1320
400
1000
200
-20℃-+60℃
Optical Characteristics
Fiber Type
Attenuation（dB/km）
Overfilled Launch Bandwidth (MHz.km)
Effective Mode Bandwidth (MHz.km)
1310nm
1550nm
850nm
1300nm
850nm
1300nm
850nm
G.652D
≤0.4
≤0.3
－
－
－
－
－
G.657A
≤0.4
≤0.3
－
－
－
－
－
OM1
－
－
≤3.0
≤1.0
≥200
≥500
OM2
－
－
≤3.0
≤1.0
≥500
≥500
OM3
－
－
≤3.0
≤1.0
≥1500
≥500
≥2000
OM4
－
－
≤3.0
≤1.0
≥3500
≥500
≥4700
Standard Length
Length: 1000m/2000m, or customer standard.
