Indoor Fiber Optic Cables
Mini Cable
Product Description:
Category:
Indoor Fiber Optic Cables
- 产品描述
- Features
- Application
- Specification
- Download
-
Bare fiber as the basic unit, with high integration;
Aramid yarn as the strength member to improve the tensile performance of the cable;
Flame retardant, environmentally friendly, corrosion resistant out sheath.
-
Indoor integrated wiring;
Fiber flexible jumper or pigtail fiber;
Data center.
-

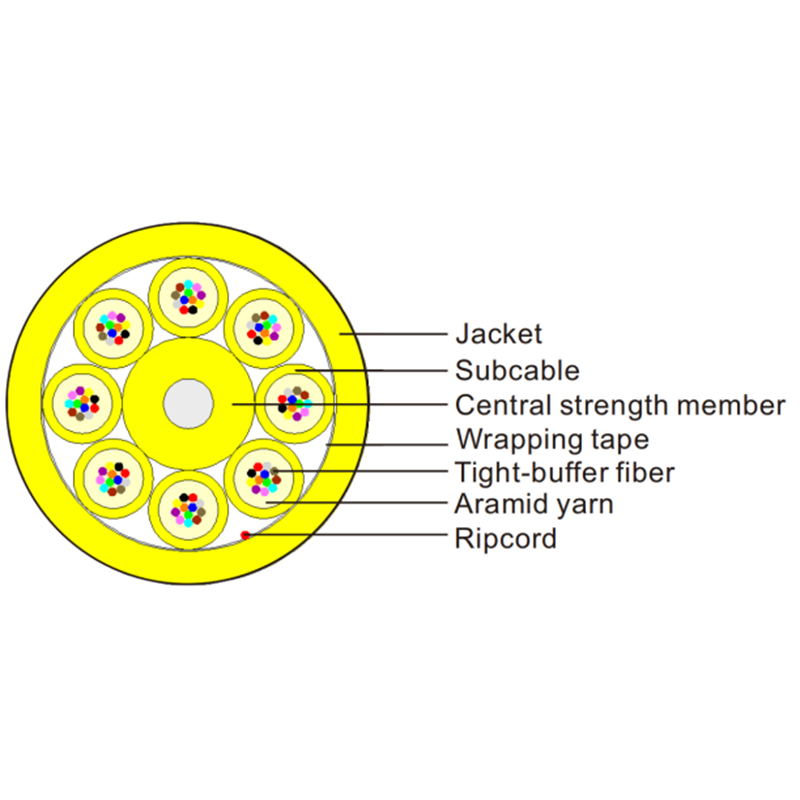

Structural Parameters
Fiber Count
Strength Member
Cable Diameter
（mm）
Weight（kg/km）
Minimum Bending Radius（mm）
Tensile Load（N)
Crush Load (N/100mm)
Temperature Range
(℃)
Static
Dynamic
Short Term
Long Term
Short Term
Long Term
2
Aramid Yarn
2.0±0.1
3.2
30
60
100
50
500
100
-20℃-+60℃
8
Aramid Yarn
2.4±0.1
4.9
30
60
150
70
500
100
-20℃-+60℃
12
Aramid Yarn
3.0±0.1
6.9
30
60
200
80
500
100
-20℃-+60℃
16
Aramid Yarn
3.4±0.1
9.0
34
68
220
100
500
100
-20℃-+60℃
24
Aramid Yarn
3.5±0.1
9.5
35
70
250
120
500
100
-20℃-+60℃
32
Aramid Yarn
5.0±0.1
21.0
50
100
250
120
500
100
-20℃-+60℃
48
Aramid Yarn
9.5±0.3
100.0
95
190
600
200
1000
200
-20℃-+60℃
64
Aramid Yarn
11.5±0.5
110.0
120
240
800
400
1000
200
-20℃-+60℃
72
Aramid Yarn
13.5±0.5
145.0
135
270
1000
400
1000
200
-20℃-+60℃
96
Aramid Yarn
13.5±0.5
150.0
135
270
1200
400
1000
200
-20℃-+60℃
144
Aramid Yarn
13.5±0.5
153.0
135
270
1320
400
1000
200
-20℃-+60℃
Optical Characteristics
Fiber Type
Attenuation（dB/km）
Overfilled Launch Bandwidth (MHz.km)
Effective Mode Bandwidth (MHz.km)
1310nm
1550nm
850nm
1300nm
850nm
1300nm
850nm
G.652D
≤0.4
≤0.3
－
－
－
－
－
G.657A
≤0.4
≤0.3
－
－
－
－
－
OM1
－
－
≤3.0
≤1.0
≥200
≥500
OM2
－
－
≤3.0
≤1.0
≥500
≥500
OM3
－
－
≤3.0
≤1.0
≥1500
≥500
≥2000
OM4
－
－
≤3.0
≤1.0
≥3500
≥500
≥4700
Standard Length
Length: 1000m/2000m, or customer standard.
