ASU Fiber Optic Cable

Product Description:

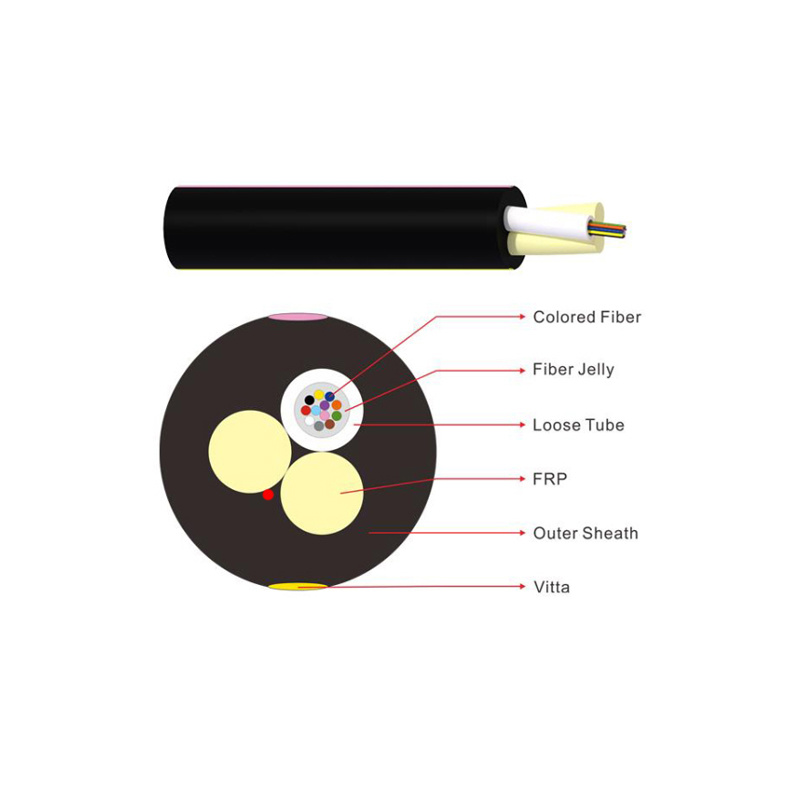

The 2~12 Fibers ASU Cable(AS80 and AS120) is a Self-Supported Optical Cable, It was developed to provide the connection between devices, being indicated for installation in urban and rural networks, in spans of 80m or 120m. Because it is self-supported and totally dielectric, it has FRP strength member as a traction element, thus avoiding electrical discharges in the networks. It is easy to handle and install, eliminating the need to use strings or grounding.

Category:

Outdoor Fiber Optic Cables

+86 18145922016

sales@fiber-mile.com

CONTACT+

产品描述
Features
Application
Specification
Download

- 80 meter span (AS 80) or 120 meter span (AS 120) optional
- 6FO, 8FO, 12FO fiber core Optional
- Non-metallic, all diectric help on avoiding power problem
- 2 FRP brings better span
- CATV/CCTV，W-lan
- FTTH/FTTA/FTTX
- School，Express Railway

Items		GYFTY Fiber Optic Cable Non-metallic cable ASU cable
Fiber	Fiber type	G.652D
	Fiber count	1-24
	Color	Blue/Orange/Green/Brown/Grey/White/Red/Black/Yellow/Violet/Pink/Aqua
Loose tube	Material	PBT
	Diameter	1-12 cores:1.8 ±0.1mm;24cores:2.4 ±0.1mm
	Water-blocking material	Gel-filled
Strength member	Material	FRP
Strength member	Diameter	1-12 cores:1.0 ±0.1mm;24cores:1.5 ±0.1mm
Outer jacket	Material	MDPE
	Color	Black
	Thickness	1-12 cores:3.5 ±0.1mm;24cores:4.2 ±0.1mm
	Diameter	1-12 cores:6.5 ±0.2mm;24cores:8.5 ±0.2mm
